Need a 1985 #11676 tesoro silver sabre vlf discriminator wiring schematic

[Confidant]

Hello,


Fellow treasure hunters.


I need a 1985 #11676 Tesoro silver sabre (color If possible) wiring schematic, my battery wires were pulled loose by accidental dropping of a full battery pack, and need the wiring diagram for solder repair.

The unit was bought new In 85, misplaced and I can't find mine.

Please respond below:
confidant01@gmail.com
Or contact through normal forum channels


Thanks,

Confidant

[kt315]

silver sabre I
ss II
ss PLUS

what you have? pics?

[SVEN1]

I emailed him all the the schematics, etc. yesterday.

[Confidant]

KT315,


I have what SVEN1 sent me, and a colored version would be very helpful, but It has to be 1985 #11676 Tesoro silver sabre VLF discriminator model actual wiring schematic color picture, so I can try and make sense of It.

Thanks,

Confidant

[Confidant]

SVEN1,


Thanks for sending the schematics to me, I appreciate that, but I can't make out the black and white diagrams It's clear but Greek to me, the colored cutlass picture was helpful and worth a thousand words but not my unit.



Confidant

[kt315]

KT315,


I have what SVEN1 sent me, and a colored version would be very helpful, but It has to be 1985 #11676 Tesoro silver sabre VLF discriminator model actual wiring schematic color picture, so I can try and make sense of It.

Thanks,

Confidant

High Resolution pics can help. from your side certainly, not from Sven side.

pleasure

[dbanner]

Hello,


Fellow treasure hunters.


I need a 1985 #11676 Tesoro silver sabre (color If possible) wiring schematic, my battery wires were pulled loose by accidental dropping of a full battery pack, and need the wiring diagram for solder repair.

The unit was bought new In 85, misplaced and I can't find mine.

Please respond below:
confidant01@gmail.com
Or contact through normal forum channels


Thanks,

Confidant

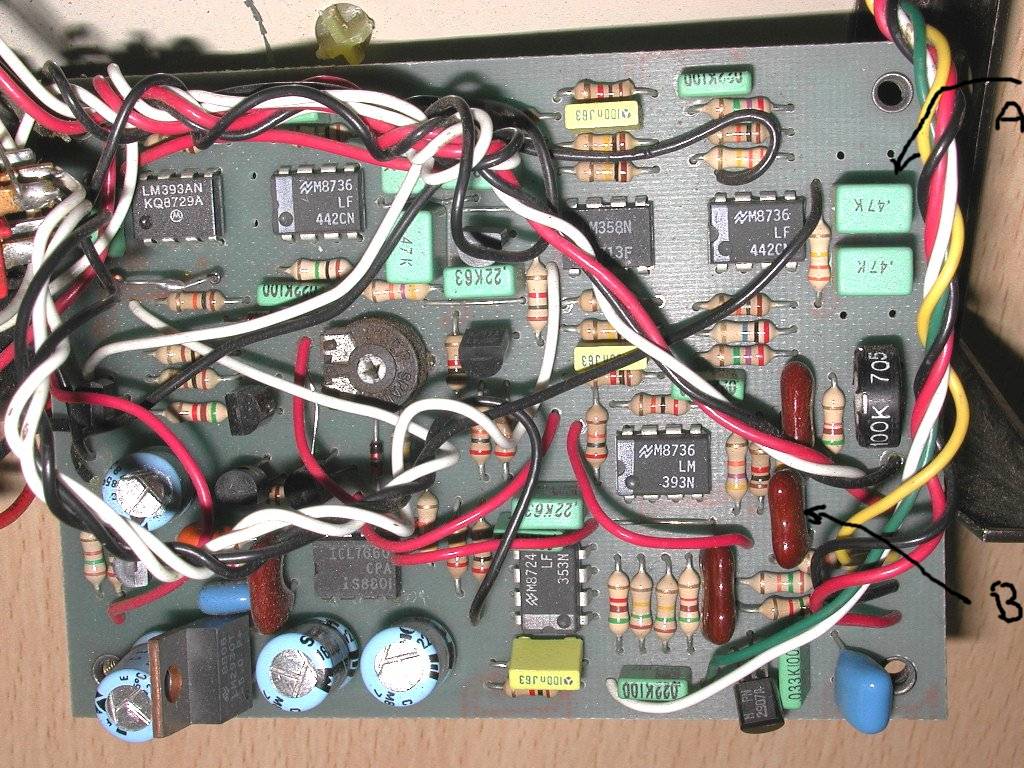

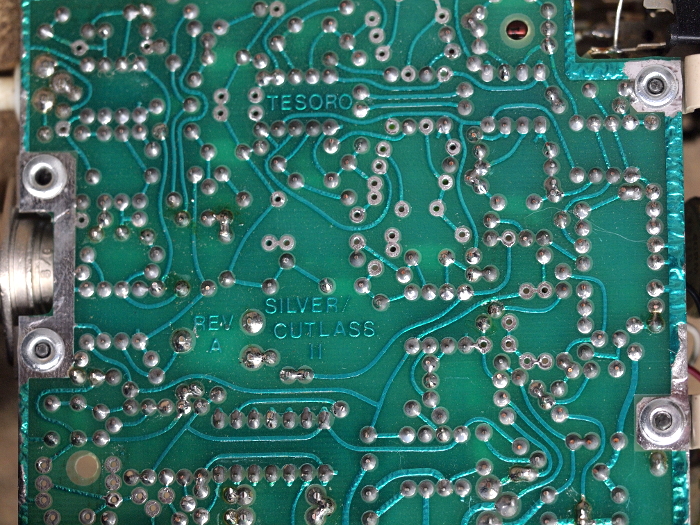

Does your unit have a two sided circuit board, in other words, do you see foil tracks runnning between components on top and bottom (both sides) of the printed circuit board? If so, then there are pics of this board here on the forum. I will dig them up and post for you.

It would be a big help if you can put a photo or two of your unit's circuit board.

[kt315]

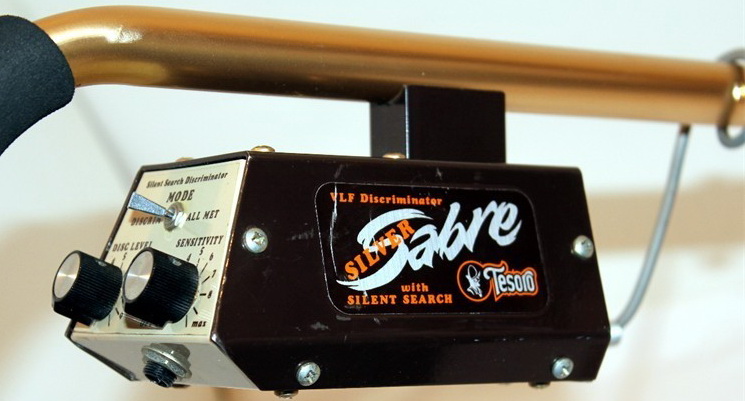

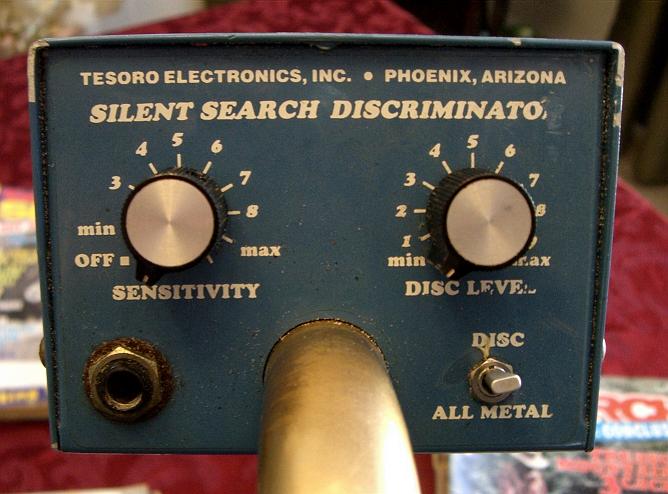

DB some pics for initialization of answering. i hope new member will be more active.

[dbanner]

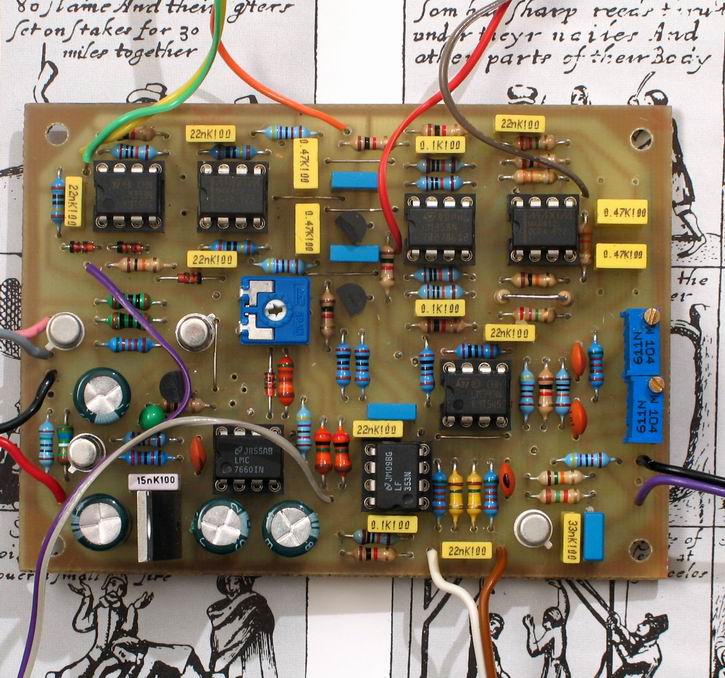

If your circuit board is like this one, then the batt, wires connect as shown in photo.

[dbanner]

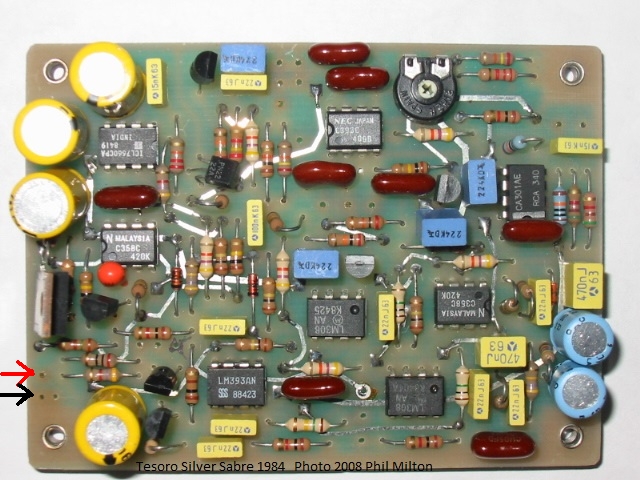

If your circuit board is like this one, then look at red/ black battery wires on the left of the first pic. The second pic is of the same board, except it's the original tesoro.
Now beyond this, if you require a complete rewiring of your unit because of busted wires all over the place, then you'll have to post photos of your troubled device.

[kt315]

good winter melancholy matter DB. if topicstarter will give HR pics we could help him. i must change all LR pics on HR pics in 2020 new year.

[dbanner]

good winter melancholy matter DB. if topicstarter will give HR pics we could help him. i must change all LR pics on HR pics in 2020 new year.

[ATTACH]48461[/ATTACH]

Don't be ridiculous.
Our duty, at least my duty, is to be of assistancewherever I can. I am not amenable to the purview of war as you are, my dear KT315
Maybe in your neck of the woods there is much respite. Something I am not familiar with.

[kt315]

assistancewherever I can. assistancewherever if you have the info. or not you cant assistancewherever.
you cant take something from nothing. you cant make a car from an air.
if newbie gives some info he will not being dead at least.
capitalistic world is crazy. everybody wants just TO GET UP RIGHT NOW and does not want be the altruistic giving in exchange.
at least you take the info that people had shared before you . NO another source for info.
just every newbie is sure THE SOURCE OF THE INFO. then we keep it and then we answer on every "HELP SOS BROKEN WIRES".

[SVEN1]

SVEN1,


Thanks for sending the schematics to me, I appreciate that, but I can't make out the black and white diagrams It's clear but Greek to me, the colored cutlass picture was helpful and worth a thousand words but not my unit.



Confidant

I included the Cutlass II, big plastic brown box as it shared the same board with the Silver Sabre II, minus some parts that might be good for reference.

[kt315]

DB do you look the mods given on silver sabre plus in COMPASS forum?
http://compass-metal-detector-forum....td7621948.html
