Gold Mask pi

[ZOUjiarui]

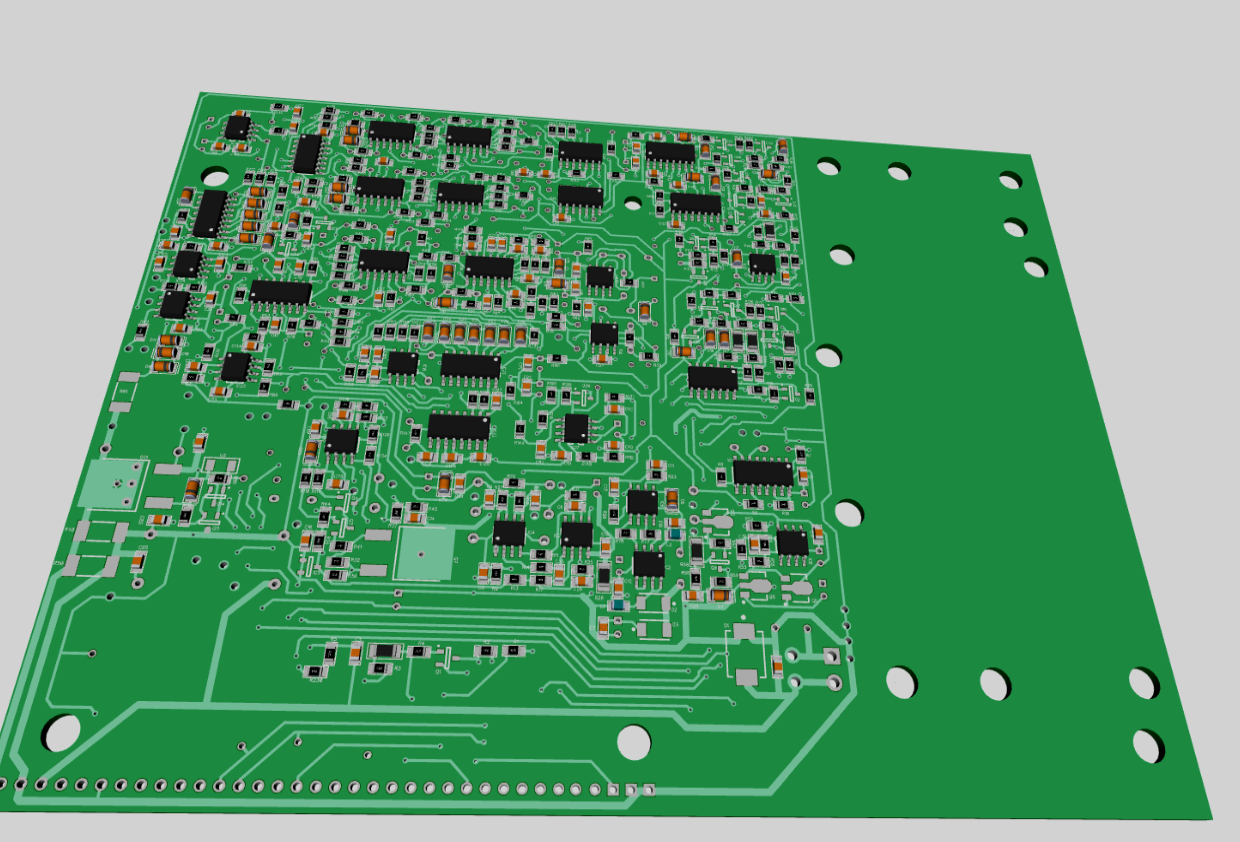

I have a golden mask PI detector CPB layout I would like to share.
I got it in exchange from a horrible profiteer, but a professional told me that it was fake and that it had problems.

[ZOUjiarui]

https://drive.google.com/folderview?...k2kXz_245E5gn9
This is a link to Google Cloud Drive.

[ZOUjiarui]

It opens using the AD software.

[ZOUjiarui]

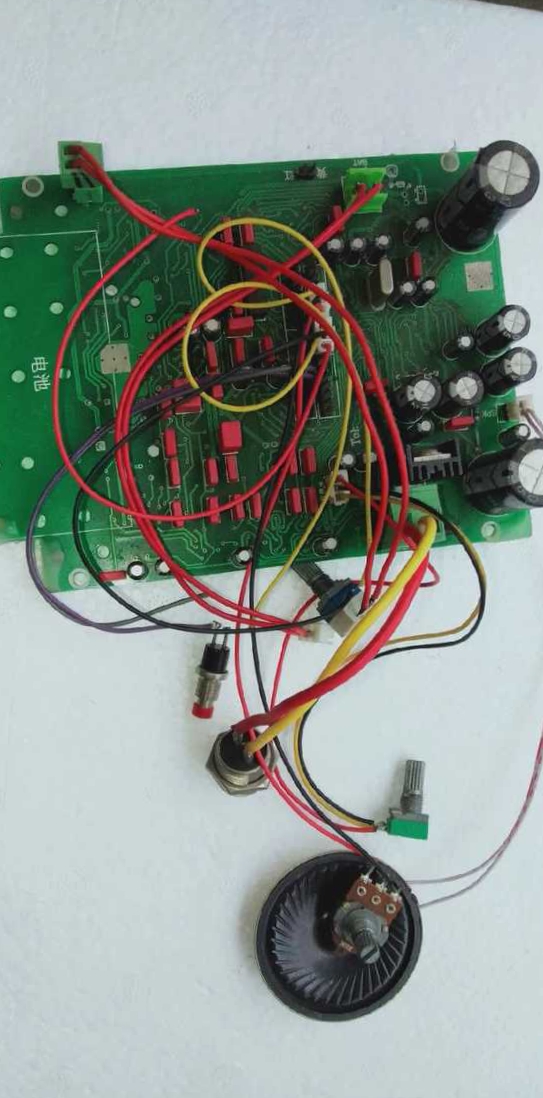

A lot of people made and sold it, but he didn't give me the right PCB.

[Carl-NC]

It would be better if you upload the files directly to the forum. Use the Manage Attachments feature.

[ZOUjiarui]

It's done.

[ZOUjiarui]

There is also a component table, which is in Chinese.

[DHpro]

Of course it's fake. What do you think - is the manufacturer so stupid as to allow such easy copying and cloning of one of the best pulsed metal detectors in the last 10 years? Having a complete and reliable list of used parts, including a printed circuit board, will hardly allow you to repeat the characteristics of the original. In China, everything is copied, but some special analog products, unlike digital ones, are not available for repetition.

[eclipse]

I haven't opened the PCB file because I don't have the software but looking at the parts list is remarkably accurate as far I see.
And yes it's easy to clone the circuit, it's NOTHING SO INTERESTING /I don't sell it or trade it so please don't ask/

[ZOUjiarui]

The data may be correct, but I forgot the values of several multi-turn potentiometers.
Manufacturers are full of ****. They just want to sell machines and make up stories about getting rich with machines.
Someone told me that the information was not correct, but he was the one who made up the story to sell the machine. It was not credible. They only wanted to monopolize and sell the machine.

[ZOUjiarui]

What's the use of monopoly? All the technology is here. They make antique machines that are out of date.

[ZOUjiarui]

Another trap, the potentiometer is not multi-turn

[eclipse]

On the Deep Hunter 3 there is multi turn pot.

[ZOUjiarui]

‘[ATTACH]56416[/ATTACH

[ZOUjiarui]

In order to save costs, manufacturers only use the smallest potentiometers.
