Old pinpointer

[Gervm]

It`s old but sensitive russian pinpointer. I made it several years ago and it worked. May be this sircuit will be useful for somebody...

[detectoman]

fantastico, veamos que dice esteban de esto, creo que con algunas modificaciones, ahora resultara superior a muchos que andan por ahi

[detectoman]

creo que este le va a gustar a esteban, hey gervm, i quest, have this falses'? what range? ground effect? is stable? is critic? what comsuption? what ohms transformer, what ohms coils, etc, thanks brodhy in advance for attention

[detectoman]

time after i think this is very critic for put in function, what you say? very much components,

[Gervm]

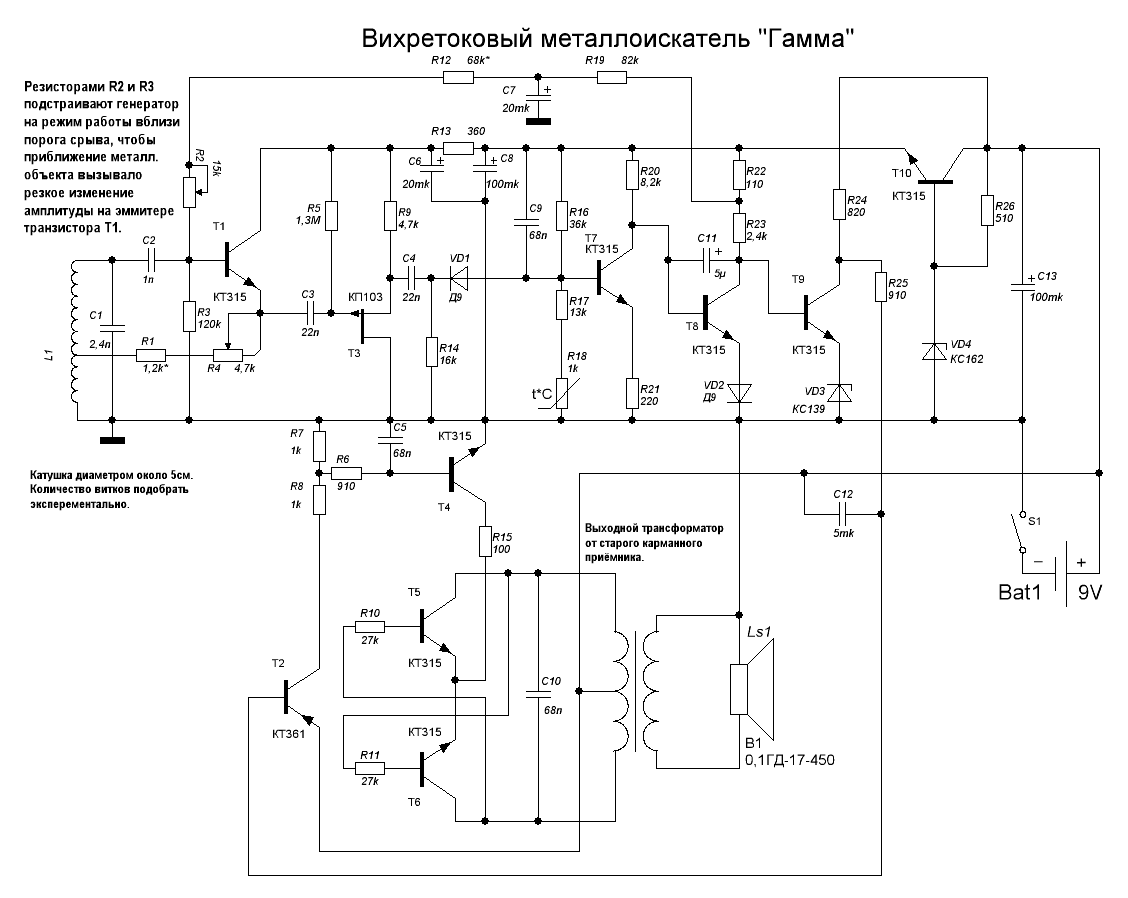

This devise was made for needs of the soviet state. It`s enough stable and sensitive. This detector was made as handset, it had litle coil (~5cm in diametre) at the end. As you see they even made termocompensation - R18. This detector is very sensitive to litle targets as litle coins etc. When I was making it I used transformer from litle poket radio. I think it`s "construction of sunday morning" but it can be useful for archeological needs.

[Gervm]

I find that old circuits often have original technical solutions that can be useful for building your own detector whith necessary characteristics. I am collecting old circuits and can send unknown. Can I insert insert circuits from old magazines? How about rules of this forum?

[Geo]

I find that old circuits often have original technical solutions that can be useful for building your own detector whith necessary characteristics. I am collecting old circuits and can send unknown. Can I insert insert circuits from old magazines? How about rules of this forum?

I think that only if you have the permision of the magazine!!!
But only Carl can say us exactly

[Qiaozhi]

I find that old circuits often have original technical solutions that can be useful for building your own detector whith necessary characteristics. I am collecting old circuits and can send unknown. Can I insert insert circuits from old magazines? How about rules of this forum?

I think that only if you have the permision of the magazine!!!
But only Carl can say us exactly

It depends on the magazine. If you list them here, then Carl will let you know if you need permission.

[detectoman]

hello gervm, in advance, can you? send to me any increible circuit old and simple? for everyvary modes detection, i.r microwaves, resonance, ultrasound, lazer, sonar radar etc? gracias por adelantado to my mail narm5@hotmail.com

[Gervm]

I say about old russian, bulgarian etc magazines and books.

[WM6]

I say about old russian, bulgarian etc magazines and books.

As far I know material copyrights not exist anymore for this publications, but there are still moral rights, so it is yours to specify source of your insertion here.

[Gervm]

So for example is the next project known among members of forum. This is TR deep detector also known as "barrel". Barrel - the shape of the search head. It is enough original. I could translate the text.

[Gervm]

One day I saw circuit of this unit at geocities but construction of search head is more interesting. We can easily make more modern circuit using modern parts.

[Geo]

One day I saw circuit of this unit at geocities but construction of search head is more interesting. We can easily make more modern circuit using modern parts.

If it is interesting, we can try

[Gervm]

So I`ll make picture by hand (in the article was only describtion and sircuit) and then if interesting I`ll translate describtion of details.
Or will be better open separate thread?
