Simplest PI detector possible?

[6666]

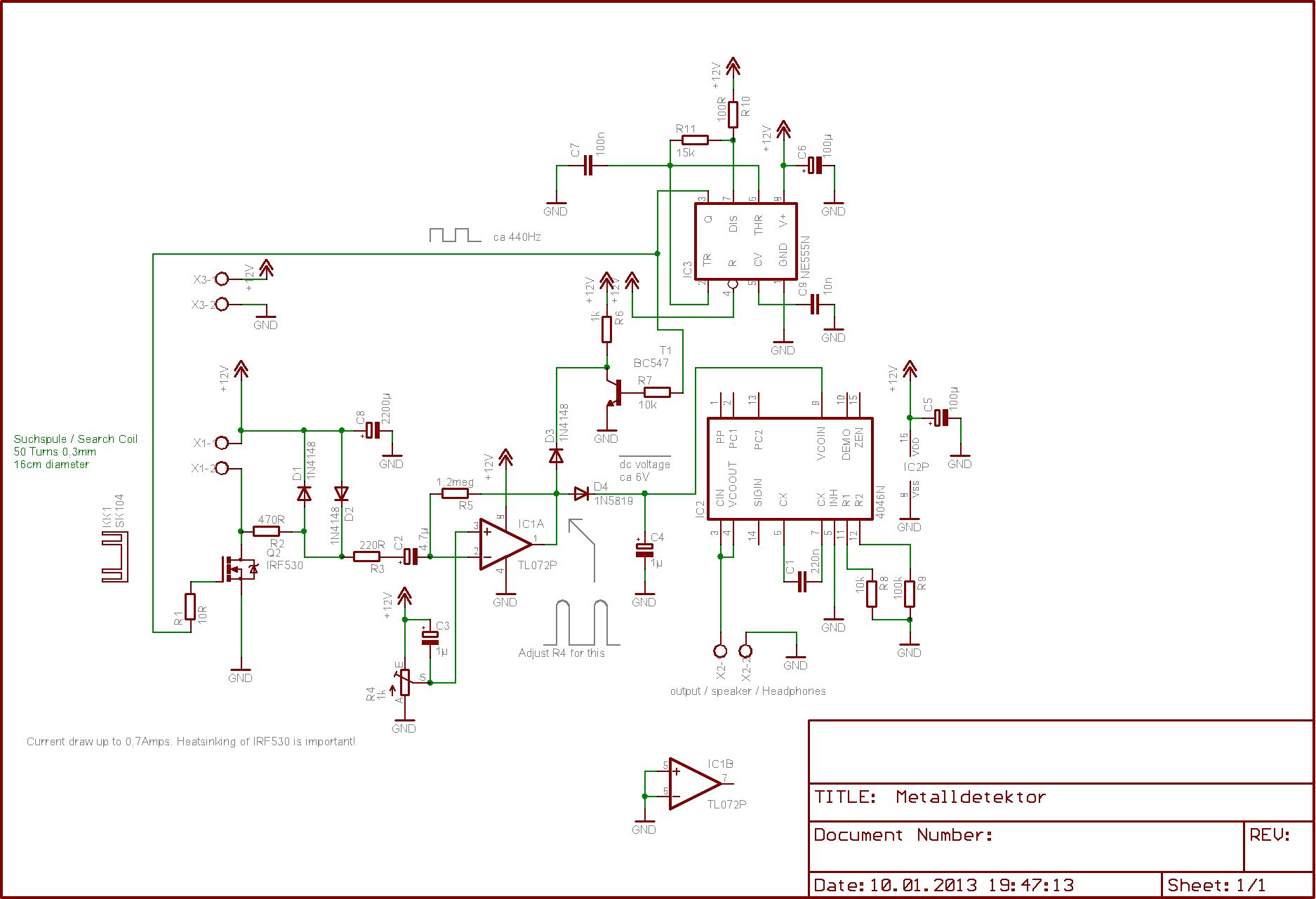

While looking around one of the Russian forums I came across this circuit, looks interesting and simple.
Maybe Eddy71 knows a bit more about it.

[Eddy71]

Look hire: http://radioskot.ru/forum/14-3527-1

[rodrigo_mattia]

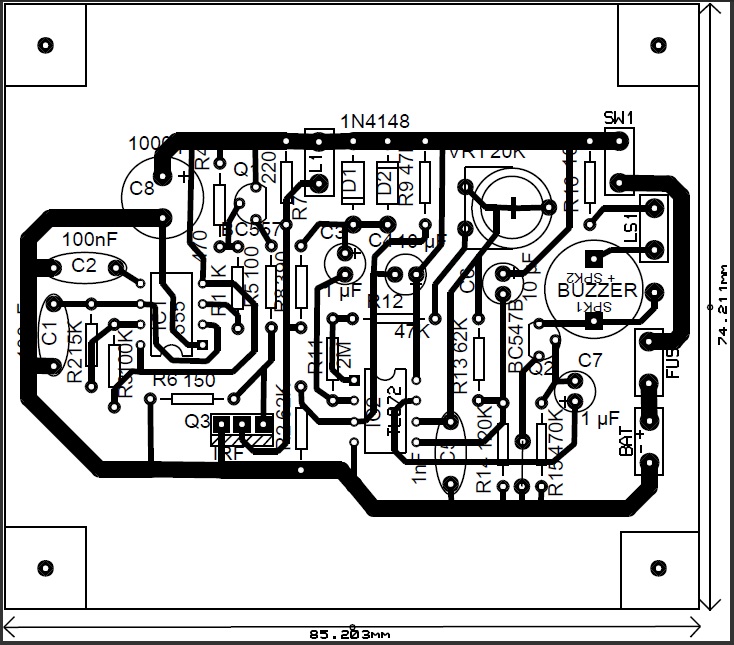

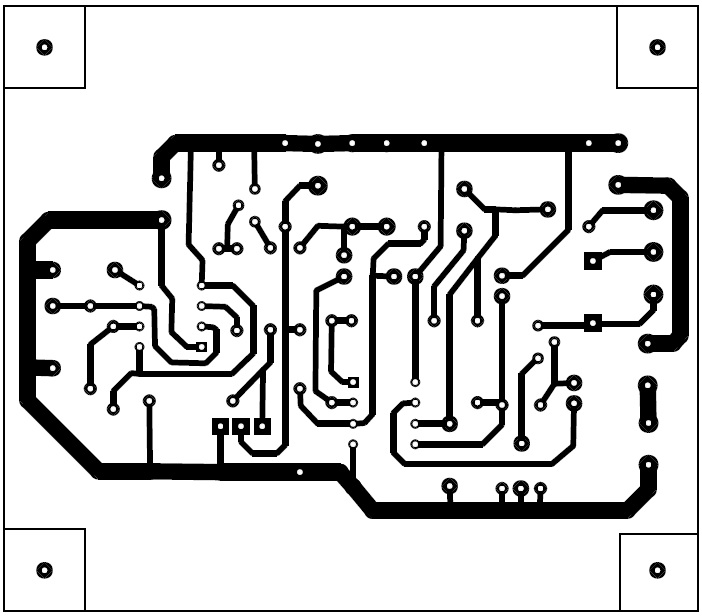

This is my test , it works fine:
This is the pirat, frequency 280-290 hz, coil 8 inch, 295uh - 1.5ohms , damping resistor 540ohms, time pulse 3%.

http://3.bp.blogspot.com/-8fl2iFXVQa...Bpcb%2B3_4.jpg


My Video
https://youtu.be/aEdvK5rGVGw

[totob]

good job
what is stability of this detector when you run it for long time?
and coil information (number of turns,wire gauge ) ?
is it suitable for large coils?

[bernte_one]

Look hire: http://radioskot.ru/forum/14-3527-1

hello Eddy71,

do you have account on radioskot? if yes can you post the files here for geotech
once for troll project with pic controller

and this too
http://radioskot.ru/forum/14-3527-244192-16-1428257376

many thanks

[6666]

hello Eddy71,

do you have account on radioskot? if yes can you post the files here for geotech
once for troll project with pic controller

and this too
http://radioskot.ru/forum/14-3527-244192-16-1428257376

many thanks

I can log into that forum with facebook

[Eddy71]

Hire site of author with many projects:

http://alex---1967.narod.ru/idei.html


Attiny13 project:

http://alex---1967.narod.ru/PI_metal..._attiny13.html

[rodrigo_mattia]

ok, Thank you for the new information.

[6666]

Hire site of author with many projects:

http://alex---1967.narod.ru/idei.html


Attiny13 project:

http://alex---1967.narod.ru/PI_metal..._attiny13.html

Thanks for the links Eddy71

[volchanick]

Çok güzel bir tasarım. Tebrik ederiz
Bu devrenin yaptım. Potansiyometre değerlerini ve bağlantı konumlarını anlamadım.

[Qiaozhi]

Çok güzel bir tasarım. Tebrik ederiz
Bu devrenin yaptım. Devreye bağlanacak potansiyometre değerlerini ve konumlarını anlayamıyorum.


Çok güzel bir tasarım. Tebrik ederiz
Bu devrenin yaptım. Potansiyometre değerlerini ve bağlantı konumlarını anlamadım.

Please read the forum rules and make your posts in English. -> Basic Rules of the Forums

[kt315]

Çok güzel bir tasarım. Tebrik ederiz
Bu devrenin yaptım. Potansiyometre değerlerini ve bağlantı konumlarını anlamadım.

simplest PI is Barracuda detector. if you do something different you meet big problem.
thats my last word on this matter.

[Alexmessomalex]

hi all I'm a new member and I read with interest all the posts for a simply russian MD.
Bernte_one has done a lot of tests. But is there a definitive project? can you publish it? thank you all

[Andi68]

I've tried this circuit - in my opinion, it's not worth building

[BKY1337]

If you want to build the Russian Pirat then use the Layout with the K157UD2, it works better.
25cm for a 1 Euro coin. If you want more then build the surf pi or maybe the barracuda.

There are also Kits at ebay for the Pirat Pi with K157ud2.
