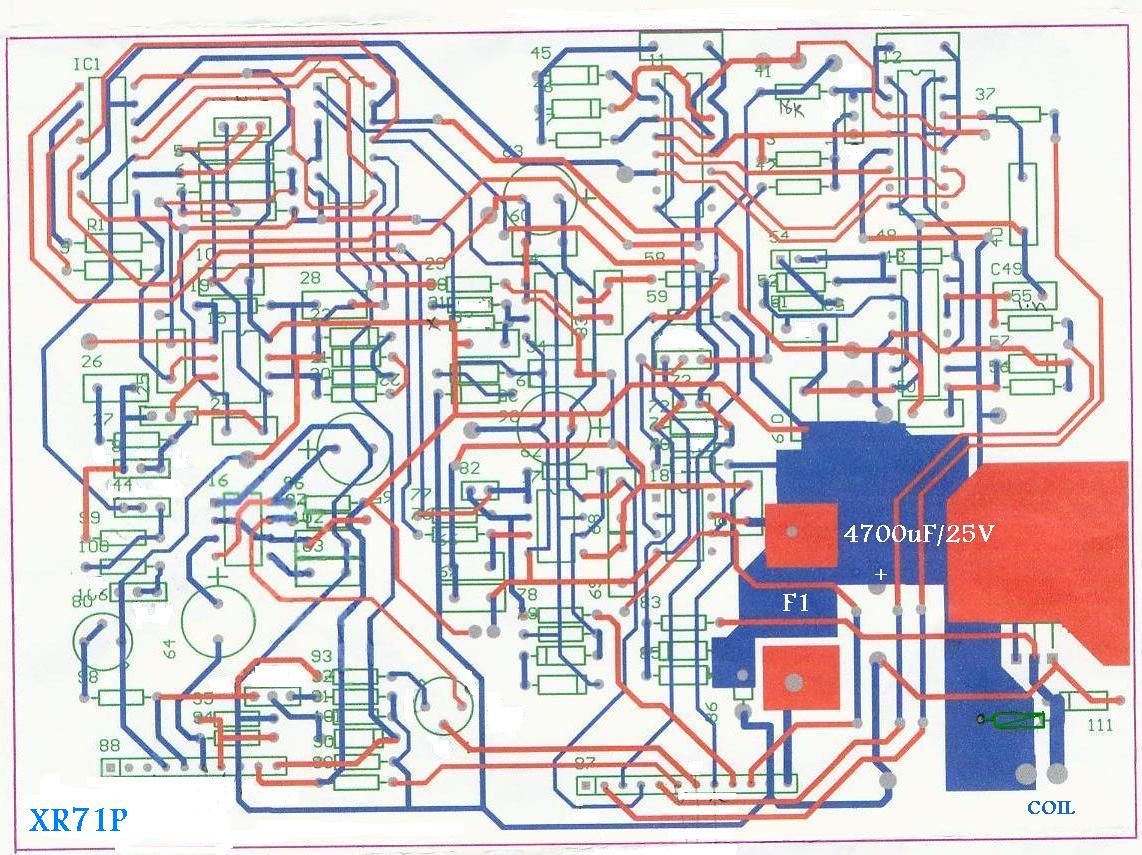

XR71 PCB

Hi,This is the original XR71 pcb which i have it.My sniffer XR71P works very well and i replaced many component valu in it,The frequency in my sniffer is about 400 Hz and 200W power.I`ll exchange it with another detector shematic,if everybody want to make it.I like that the other friends can make it easily.
Aban

[Geo]

Hi. What schematic do you want to share the XR71 with us at the forum? or tell us the difference from the pdf file?

[aban]

Exchange with PI2000

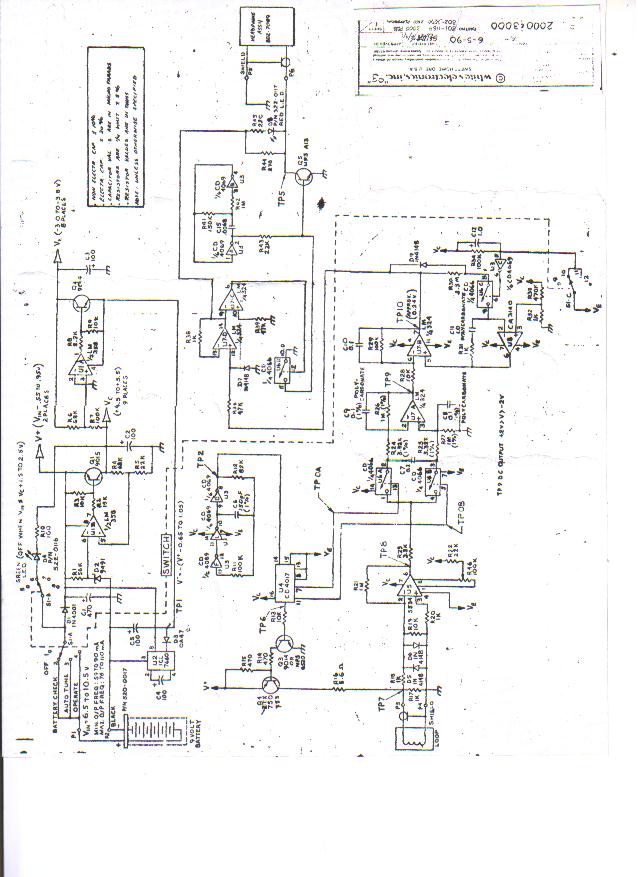

I`ll exchange the XR71P file with PI2000 from USA or another good pi shematic.

[kt315]

pi2000

[Geo]

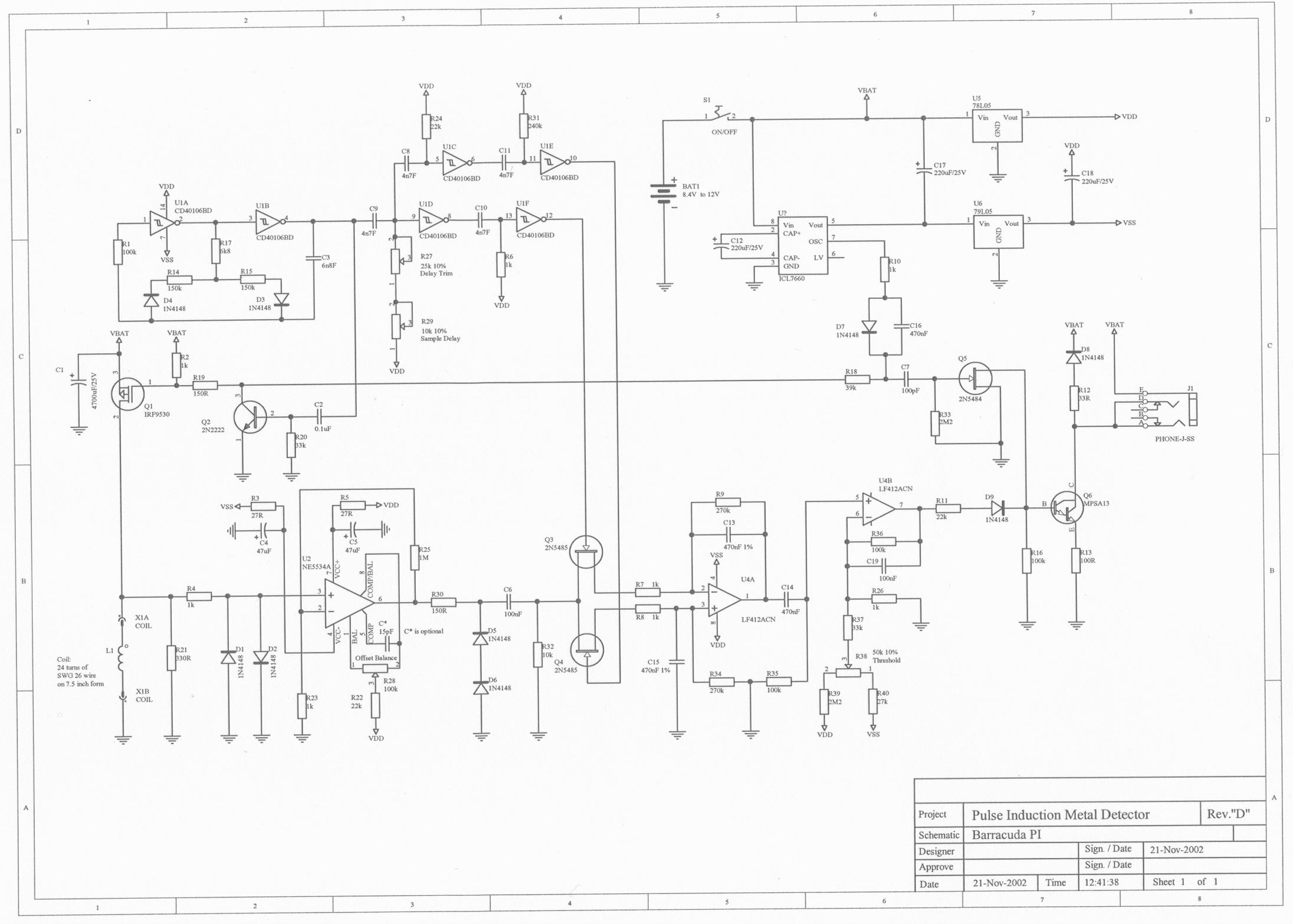

The schematic is from Baracuda one of the best PI detectors.

[aban]

XR71

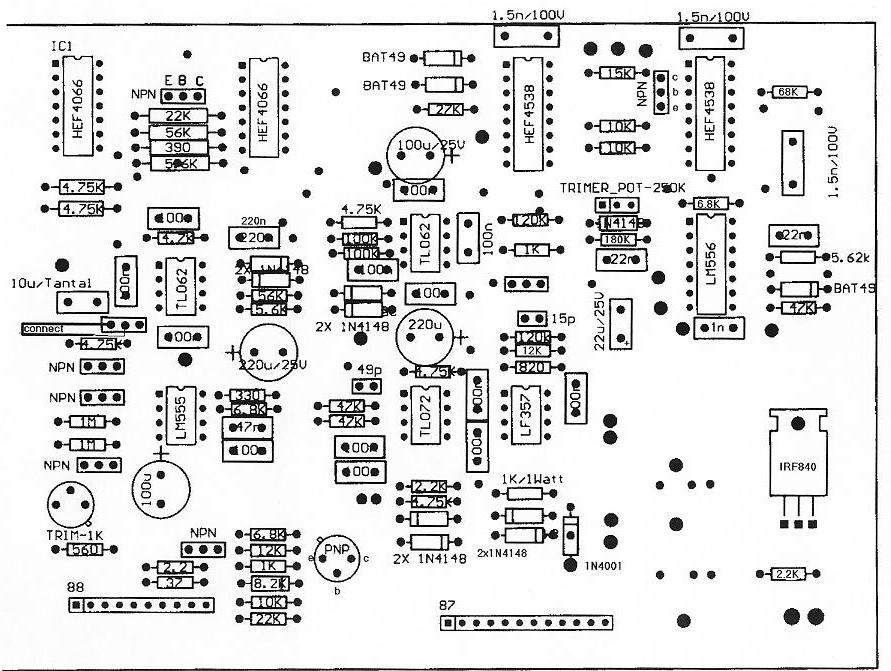

This is the components pcb of xr71.

[aban]

PULSTARll

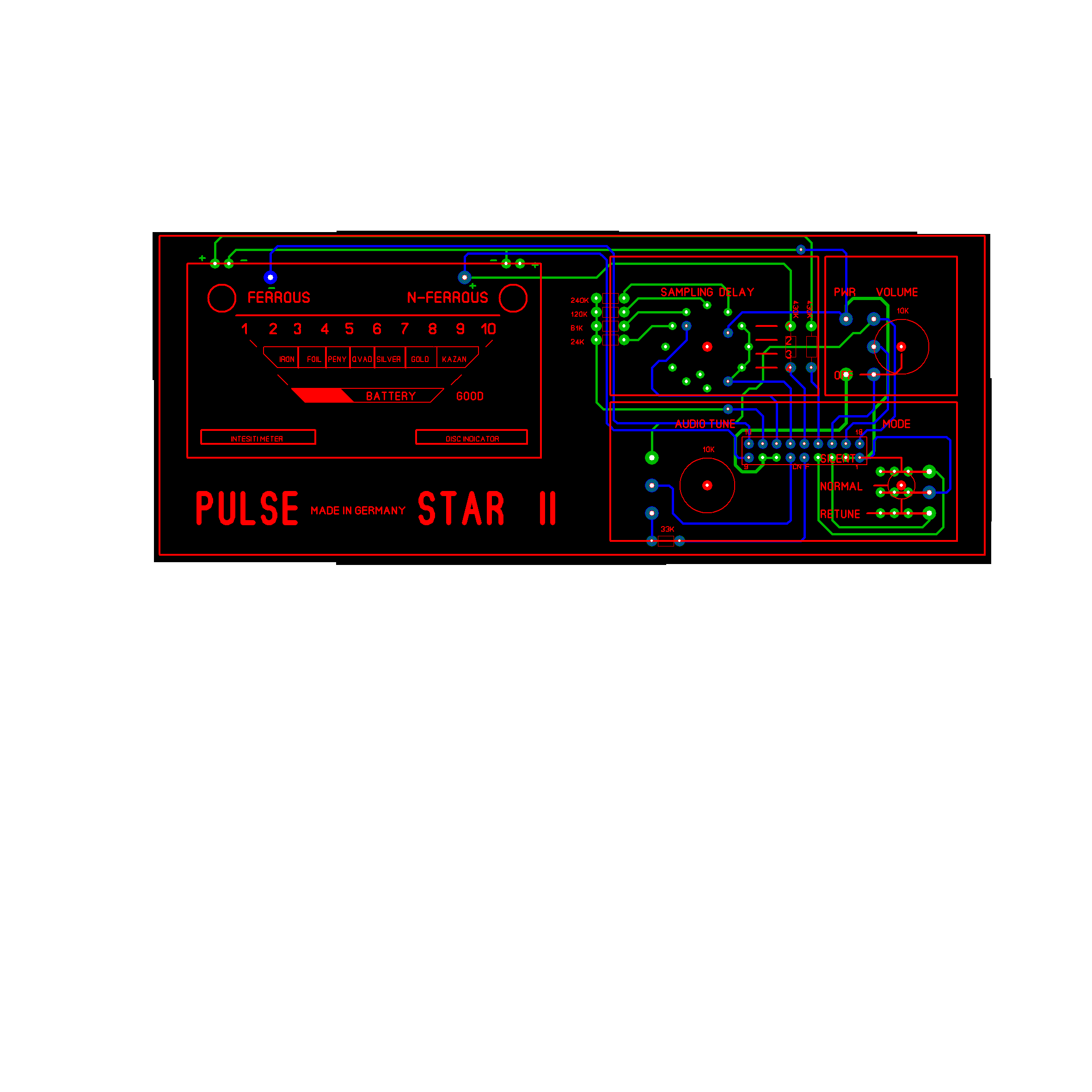

Another pi detector is psll.It can discriminate the metals in the ground.This is the front panel pcb of it which is connect on the main pcb board.

[nncunew]

OK !!!

I am think that this forums become great interesting !!!

In the interchange is where we will find the best results for everybody.

Thank, and continue working at this mode

nncunew@yahoo.com

[Geo]

OK Aban.Next step is the schematic but i think that is the same with this Protel file.

[aft_72005]

Hi Aban
Please upload here PUSE STAR II and your SNIFFER XR-71 circuits .

[aban]

PULSTARll WITH DISCRIMINATOR

Ok,It is good mashin,but i am converting it from analog display to digital LCD.The shematic of XR71 is in protel99SE.I am trying to put the good shematic detector and professional detectors shematic in the froum step by step.

[Georgi]

You guys are strange! WTF is this panel of Pulse Star? I can draw it better using paint shop...reaaally funny actually is junk..btw Sniffer's adjustments are more interesting than the circuit itself.

[aban]

PSll

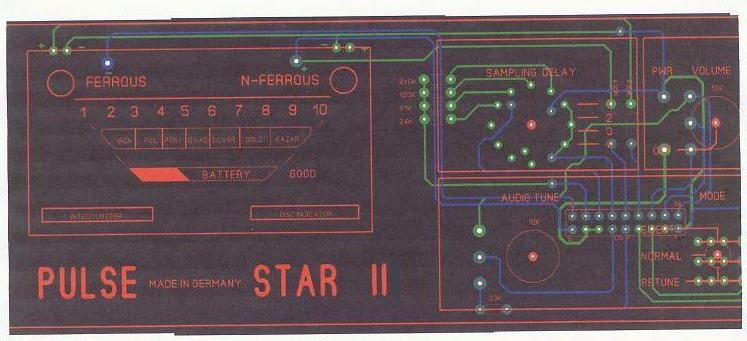

This is an old version of psll.The new version of psll have microcontroller 68H... series.

[Geo]

Hi Aban. I am working with Protel 99SE so if you send me the xr71 file i can convert it to gif and to put it in the forum.

[aban]

XR71

Hi Geo,

see your mail box.I sent you the XR71 protel99se file in your email.
